GEN

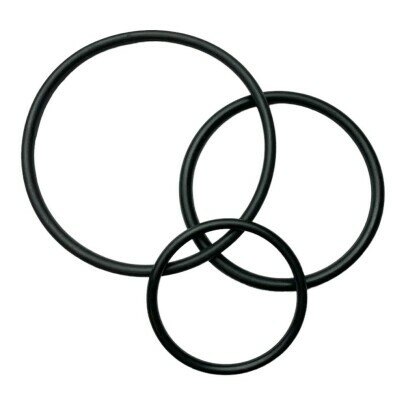

O-Ring seal OR-43.82X5.33-FPM70

43.82 43.82 54.48 54.48 5.33 5.33

Part number : OR-43.82X5.33-FPM70

GEN

Description

The O-ring Seal with the reference OR-43.82X5.33-FPM70 has an inner diameter of 43.82 mm and a thickness of 5.33 mm. It is made of FPM.

Your price: $6.81

  15 parts in stock

Quantity Price
20 - 49 $5.84
50 - 99 $4.87
100 - 499 $3.90
500 - inf $2.93
For more information, please request a quote
logo_delivery Shipped today. order within

Added

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

(646).712.9672

Description

The O-ring Seal with the reference OR-43.82X5.33-FPM70 has an inner diameter of 43.82 mm and a thickness of 5.33 mm. It is made of FPM.

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

(646).712.9672

CUSTOMERS ALSO BOUGHT
TECHNICAL DATA
  • BRAND
    GEN
  • INSIDE DIAMETER
    43.82  MM
  • INSIDE DIAMETER
    1.725"
  • OUTSIDE DIAMETER
    54.48  MM
  • OUTSIDE DIAMETER
    2.145"
  • THICKNESS
    5.33  MM
  • THICKNESS
    0.21"
  • MATERIAL
    -
  • TYPE
    -
  • HARDNESS
    70  S
  • WEIGHT
    6  G
  • PACKAGING
    -
Description

The O-ring Seal with the reference OR-43.82X5.33-FPM70 has an inner diameter of 43.82 mm and a thickness of 5.33 mm. It is made of FPM.

EXPERT ADVICE

How to read the reference of an O-ring?

Example:
OR-40X3-NBR90
Where
OR = product type (O-ring or O-ring seal)
40X3 = inside diameter X thickness
NBR = matter
90 = shore hardness

Shore hardness is a material hardness scale, usually between 70 and 90 for O-rings. The higher the number, the harder the material.

What does the number mean at the end of the reference?

This is the indication of shore hardness. Shore hardness is a material hardness scale, usually between 70 and 90 for O-rings. The higher the number, the harder the material.

Difference between NBR, FPM, EPDM, MVQ?

These are the different types of rubber. Each material will be more or less suitable for a use. Refer to the following information: FOR OILS NBR = Nitrile = Butadiene rubber - Acrylonitrile
        from -30°C to +120°C
FPM = Viton = Fluorinated Rubber
        from -20°C to +200°C
MVQ = Silicone rubber
        from -50°C to +210°C
FOR HYDROCARBONS NBR = Nitrile = Butadiene rubber - Acrylonitrile
        from -30°C to +120°C
FPM = Viton = Fluorinated Rubber
        from -20°C to +200°C
FOR BRAKE FLUID EPDM = Ethylene Rubber - Propylene - Diene
        from -40°C to +150°C
FOR WATER EPDM = Ethylene Rubber - Propylene - Diene
        from -40°C to +150°C
 FOR MORE DETAILS ON THE MATERIALS, THEIR STRENGTHS AND LIMITS OF USE, REFER TO THE COMPLETE DESCRIPTION ON THE SEALED SEARCH PAGE

How to choose the size of my O-ring?

An O-ring should not, in general, be too stretched. It is therefore preferable to take a dimension as close as possible to the groove diameter, if applicable.

The tolerances concerning the internal diameter, according to the ISO 3601-1:2008 standard, are determined with the following calculation:

Tolerance ⌀ d1 = ± [(d10,95 x 0.009) + 0.11]

For example, if your inner diameter is 15 mm then the tolerance = ±0.227 mm [(150,95 x 0.009) + 0.11]

The tolerances concerning the toroid, according to the ISO 3601-1:2008 standard, are as follows:

Standardized torus diameters ⌀ d2

Non-standardized torus diameters ⌀ d2
