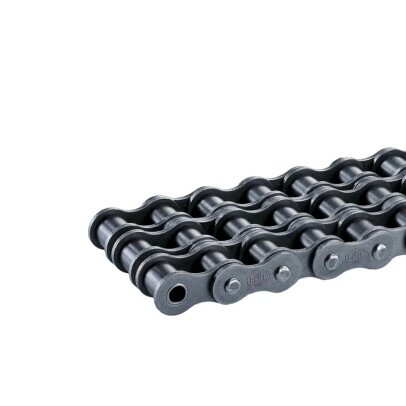

Roller chain triplex ANSI-140-3-ECOPLUS-DIN8188-5M-IWIS

Part number : ANSI-140-3-ECOPLUS-DIN8188-5M-IWIS

IWIS

Description

The Roller Chain Triplex of type 140 of the brand IWIS known under the reference ANSI-140-3-ECOPLUS-DIN8188-5M-IWIS. It has a pitch 44 mm and is to the iso606ansi norm.

See data sheet
N/A

  8 to 10 days

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

(646).712.9672

Description

The Roller Chain Triplex of type 140 of the brand IWIS known under the reference ANSI-140-3-ECOPLUS-DIN8188-5M-IWIS. It has a pitch 44 mm and is to the iso606ansi norm.

See data sheet
product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

(646).712.9672

TECHNICAL DATA
  • BRAND
  • N° EAN13
    3616060999986
  • TYPE
    140
  • WEIGHT
    111  G
  • LUBRICATION
    eco1
  • PACKAGING
    5m
  • CHAIN STANDARDS
    iso606ansi
  • ISO STANDARD BREAKING LOAD
    510  KN
  • WEIGHT PER METER
    22  KG
  • JOINT SURFACE
    14  CM2
  • PITCH
    44  MM
  • PITCH
    1.732"
  • WIDTH BETWEEN INNER PLATES
    25  MM
  • WIDTH BETWEEN INNER PLATES
    0.984"
  • ROLLER DIAMETER
    25  MM
  • ROLLER DIAMETER
    0.984"
  • AXIS DIAMETER
    12  MM
  • AXIS DIAMETER
    0.472"
  • OUTSIDE WIDTH INSIDE LINK
    37  MM
  • OUTSIDE WIDTH INSIDE LINK
    1.457"
  • PLATE HEIGHT
    42  MM
  • PLATE HEIGHT
    1.654"
  • ADDITIONAL LENGTH
    7  MM
  • ADDITIONAL LENGTH
    0.276"
  • NUMBER OF ROWS
    3
Description

The Roller Chain Triplex of type 140 of the brand IWIS known under the reference ANSI-140-3-ECOPLUS-DIN8188-5M-IWIS. It has a pitch 44 mm and is to the iso606ansi norm.
