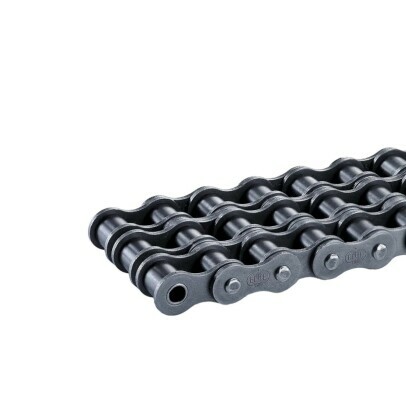

Roller Chain Triplex
Description
The roller chain triplex of type 48B of the brand IWIS known under the reference 48B-3-ELITE-DIN8187-5M-IWIS. It has a pitch 76 mm and is to the 9 norm.
You can find all the information you need about our products in our expert's advice, by clicking here Here
8 to 10 days
Need help or advice?
(646).712.9672
Description
The roller chain triplex of type 48B of the brand IWIS known under the reference 48B-3-ELITE-DIN8187-5M-IWIS. It has a pitch 76 mm and is to the 9 norm.
You can find all the information you need about our products in our expert's advice, by clicking here Here
Need help or advice?
(646).712.9672
Brand | IWIS |
---|---|
Pitch | 76 mm |
Weight | 375 000 g |
Material | STEEL |
Type | 48B |
Axis diameter | 29 mm |
number of rows | 3 |
Chain standards | iso606bs |
Series | SS |
Weight per meter | 75 kg |
Lubrication | elidurplus |
Plate height | 63 mm |
Packaging | 5m |
Roller diameter | 48 mm |
Joint surface | 61 cm2 |
ISO standard breaking load | 1 500 kN |
Additional length | 10 mm |
Width between inner plates | 45 mm |
Outside width inside link | 70 mm |
The roller chain triplex of type 48B of the brand IWIS known under the reference 48B-3-ELITE-DIN8187-5M-IWIS. It has a pitch 76 mm and is to the 9 norm.
How to read the reference of a roller chain?
10B-3-SS-ELITE-5M-IWIS :
List of specificities:
