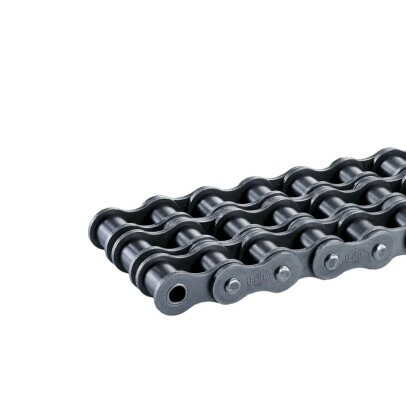

Roller chain triplex 32B-3-ELITE-DIN8187-5M-IWIS

Part number : 32B-3-ELITE-DIN8187-5M-IWIS

IWIS

Description

The Roller Chain Triplex of type 32B of the brand IWIS known under the reference 32B-3-ELITE-DIN8187-5M-IWIS. It has a pitch 50 mm and is to the iso606bs norm.

Your price: $2,907.74

  8 to 10 days

Added

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

(646).712.9672

Description

The Roller Chain Triplex of type 32B of the brand IWIS known under the reference 32B-3-ELITE-DIN8187-5M-IWIS. It has a pitch 50 mm and is to the iso606bs norm.

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

(646).712.9672

TECHNICAL DATA
  • BRAND
  • N° EAN13
    3616060999863
  • MATERIAL
    STEEL
  • TYPE
    32B
  • WEIGHT
    157800  G
  • LUBRICATION
    elidurplus
  • PACKAGING
    5m
  • SERIES
    SS
  • CHAIN STANDARDS
    iso606bs
  • ISO STANDARD BREAKING LOAD
    670  KN
  • WEIGHT PER METER
    31.56  KG
  • JOINT SURFACE
    24  CM2
  • PITCH
    50  MM
  • PITCH
    1.969"
  • WIDTH BETWEEN INNER PLATES
    30  MM
  • WIDTH BETWEEN INNER PLATES
    1.181"
  • ROLLER DIAMETER
    29  MM
  • ROLLER DIAMETER
    1.142"
  • AXIS DIAMETER
    17  MM
  • AXIS DIAMETER
    0.669"
  • OUTSIDE WIDTH INSIDE LINK
    45  MM
  • OUTSIDE WIDTH INSIDE LINK
    1.772"
  • PLATE THICKNESS INSIDE OUTSIDE
    7,00/6,00
  • PLATE HEIGHT
    42  MM
  • PLATE HEIGHT
    1.654"
  • ADDITIONAL LENGTH
    7  MM
  • ADDITIONAL LENGTH
    0.276"
  • NUMBER OF ROWS
    3
Description

The Roller Chain Triplex of type 32B of the brand IWIS known under the reference 32B-3-ELITE-DIN8187-5M-IWIS. It has a pitch 50 mm and is to the iso606bs norm.
