Roller Chain Triplex
Description

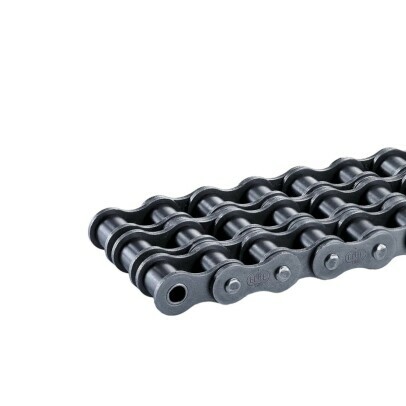

The roller chain triplex of type 24B of the brand IWIS known under the reference 24B-3-ELITE-DIN8187-5M-IWIS. It has a pitch 38 mm and is to the 9 norm.
You can find all the information you need about our products in our expert's advice, by clicking here Here
8 to 10 days
Need help or advice?
(646).712.9672
Description
The roller chain triplex of type 24B of the brand IWIS known under the reference 24B-3-ELITE-DIN8187-5M-IWIS. It has a pitch 38 mm and is to the 9 norm.
You can find all the information you need about our products in our expert's advice, by clicking here Here
Need help or advice?
(646).712.9672
Brand | IWIS |
---|---|
Pitch | 38 mm |
Weight | 100 500 g |
Material | STEEL |
Type | 24B |
Axis diameter | 14 mm |
number of rows | 3 |
Chain standards | iso606bs |
Series | SS |
Weight per meter | 20,10 kg |
Lubrication | elidurplus |
Plate height | 33 mm |
Packaging | 5m |
Roller diameter | 25 mm |
Joint surface | 16 cm2 |
ISO standard breaking load | 425 kN |
Additional length | 6 mm |
Width between inner plates | 25 mm |
Outside width inside link | 37 mm |
The roller chain triplex of type 24B of the brand IWIS known under the reference 24B-3-ELITE-DIN8187-5M-IWIS. It has a pitch 38 mm and is to the 9 norm.
How to read the reference of a roller chain?
10B-3-SS-ELITE-5M-IWIS :
List of specificities:
