ANSI120-1HV-ELITE-5M-IWIS
IWIS

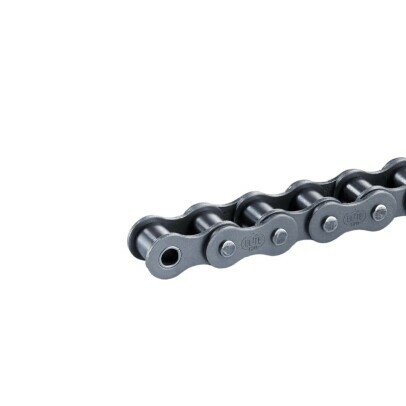

Roller chain simplex ANSI120-1HV-ELITE-5M-IWIS

Part number : ANSI120-1HV-ELITE-5M-IWIS

IWIS
Trustpilot

Trustpilot

Description

The Roller Chain Simplex of type 120 of the brand IWIS known under the reference ANSI120-1HV-ELITE-5M-IWIS. It has a pitch 38.1 mm and is to the iso606ansi norm.

See data sheet
N/A

  8 to 10 days

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

(646).712.9672

Trustpilot

Description

The Roller Chain Simplex of type 120 of the brand IWIS known under the reference ANSI120-1HV-ELITE-5M-IWIS. It has a pitch 38.1 mm and is to the iso606ansi norm.

See data sheet
product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

(646).712.9672

Trustpilot
TECHNICAL DATA
  • BRAND
    IWIS
  • N° EAN13
    3616060998972
  • TYPE
    120
  • LUBRICATION
    elidurplus
  • PACKAGING
    5m
  • SERIES
    HV
  • CHAIN STANDARDS
    iso606ansi
  • ISO STANDARD BREAKING LOAD
    182.4  KN
  • WEIGHT PER METER
    6.6  KG
  • JOINT SURFACE
    4.13  CM2
  • PITCH
    38.1  MM
  • PITCH
    1 1/2"
  • WIDTH BETWEEN INNER PLATES
    25.22  MM
  • WIDTH BETWEEN INNER PLATES
    0.993"
  • ROLLER DIAMETER
    22.23  MM
  • ROLLER DIAMETER
    7/8"
  • AXIS DIAMETER
    11.11  MM
  • AXIS DIAMETER
    7/16"
  • PLATE HEIGHT
    36.2  MM
  • PLATE HEIGHT
    1.425"
  • ADDITIONAL LENGTH
    6.6  MM
  • ADDITIONAL LENGTH
    0.26"
  • NUMBER OF ROWS
    1
Description

The Roller Chain Simplex of type 120 of the brand IWIS known under the reference ANSI120-1HV-ELITE-5M-IWIS. It has a pitch 38.1 mm and is to the iso606ansi norm.
