ANSI100-1-ELITE-DIN8188-5M-IWIS
IWIS

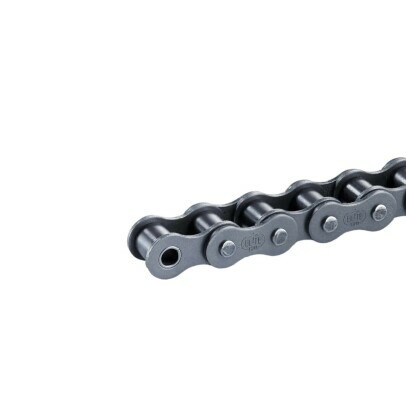

Roller chain simplex ANSI100-1-ELITE-DIN8188-5M-IWIS

Part number : ANSI100-1-ELITE-DIN8188-5M-IWIS

IWIS
Trustpilot

Trustpilot

Description

The Roller Chain Simplex of type 100 of the brand IWIS known under the reference ANSI100-1-ELITE-DIN8188-5M-IWIS. It has a pitch 31.75 mm and is to the iso606ansi norm.

See data sheet
N/A

  8 to 10 days

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

(646).712.9672

Trustpilot

Description

The Roller Chain Simplex of type 100 of the brand IWIS known under the reference ANSI100-1-ELITE-DIN8188-5M-IWIS. It has a pitch 31.75 mm and is to the iso606ansi norm.

See data sheet
product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

(646).712.9672

Trustpilot
TECHNICAL DATA
  • BRAND
    IWIS
  • N° EAN13
    3616060999627
  • TYPE
    100
  • LUBRICATION
    elidurplus
  • PACKAGING
    5m
  • CHAIN STANDARDS
    iso606ansi
  • ISO STANDARD BREAKING LOAD
    87  KN
  • WEIGHT PER METER
    3.91  KG
  • JOINT SURFACE
    2.58  CM2
  • PITCH
    31.75  MM
  • PITCH
    1 1/4"
  • WIDTH BETWEEN INNER PLATES
    18.9  MM
  • WIDTH BETWEEN INNER PLATES
    0.744"
  • ROLLER DIAMETER
    19.05  MM
  • ROLLER DIAMETER
    3/4"
  • AXIS DIAMETER
    9.54  MM
  • AXIS DIAMETER
    0.376"
  • PLATE HEIGHT
    30.17  MM
  • PLATE HEIGHT
    1.188"
  • ADDITIONAL LENGTH
    6.1  MM
  • ADDITIONAL LENGTH
    0.24"
  • NUMBER OF ROWS
    1
Description

The Roller Chain Simplex of type 100 of the brand IWIS known under the reference ANSI100-1-ELITE-DIN8188-5M-IWIS. It has a pitch 31.75 mm and is to the iso606ansi norm.
