Roller Chain Simplex
Description

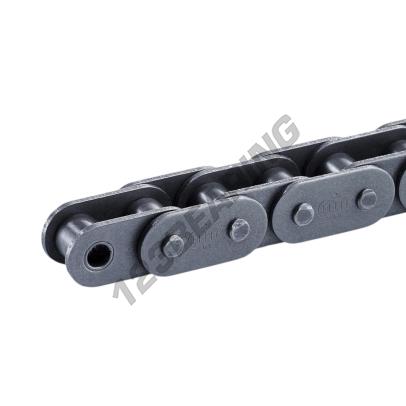

The roller chain simplex of type 16B of the brand IWIS known under the reference 16B-1-GL-ELITEH21MM-5M-IWIS. It has a pitch 25.4 mm and is to the 9 norm.
You can find all the information you need about our products in our expert's advice, by clicking here Here
8 to 10 days
Need help or advice?
(646).712.9672
Description
The roller chain simplex of type 16B of the brand IWIS known under the reference 16B-1-GL-ELITEH21MM-5M-IWIS. It has a pitch 25.4 mm and is to the 9 norm.
You can find all the information you need about our products in our expert's advice, by clicking here Here
Need help or advice?
(646).712.9672
Brand | IWIS |
---|---|
Pitch | 25,40 mm |
Weight | 15 400 g |
Material | STEEL |
Type | 16B |
Axis diameter | 8,28 mm |
number of rows | 1 |
Chain standards | iso606bs |
Series | GL |
Weight per meter | 3,08 kg |
Lubrication | elidurplus |
Plate height | 21,08 mm |
Packaging | 5m |
Roller diameter | 15,88 mm |
Joint surface | 2,10 cm2 |
ISO standard breaking load | 60 kN |
Additional length | 5,40 mm |
Width between inner plates | 17,02 mm |
The roller chain simplex of type 16B of the brand IWIS known under the reference 16B-1-GL-ELITEH21MM-5M-IWIS. It has a pitch 25.4 mm and is to the 9 norm.
How to read the reference of a roller chain?
10B-1-SS-ELITE-5M-IWIS :
List of specificities:
