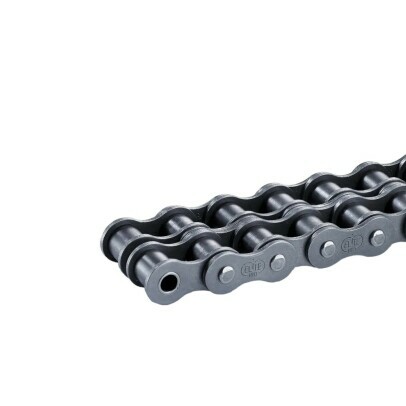

Roller chain duplex 04B-2-ELITE-5M-IWIS

Part number : 04B-2-ELITE-5M-IWIS

IWIS

Description

The Roller Chain Duplex of type 04B of the brand IWIS known under the reference 04B-2-ELITE-5M-IWIS. It has a pitch 6 mm and is to the iso606bs norm.

N/A

  8 to 10 days

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

(646).712.9672

Description

The Roller Chain Duplex of type 04B of the brand IWIS known under the reference 04B-2-ELITE-5M-IWIS. It has a pitch 6 mm and is to the iso606bs norm.

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

(646).712.9672

TECHNICAL DATA
  • BRAND
  • N° EAN13
    3616060987983
  • MATERIAL
    STEEL
  • TYPE
    04B
  • WEIGHT
    1200  G
  • LUBRICATION
    elidurplus
  • SERIES
    G1
  • CHAIN STANDARDS
    iso606bs
  • ISO STANDARD BREAKING LOAD
    5  KN
  • WEIGHT PER METER
    0.24  KG
  • JOINT SURFACE
    0.16  CM2
  • PITCH
    6  MM
  • PITCH
    0.236"
  • WIDTH BETWEEN INNER PLATES
    2.8  MM
  • WIDTH BETWEEN INNER PLATES
    0.11"
  • ROLLER DIAMETER
    4  MM
  • ROLLER DIAMETER
    0.157"
  • AXIS DIAMETER
    1.85  MM
  • AXIS DIAMETER
    0.073"
  • SHAFT LENGTH
    12.3  MM
  • SHAFT LENGTH
    0.484"
  • OUTSIDE WIDTH INSIDE LINK
    4.15  MM
  • OUTSIDE WIDTH INSIDE LINK
    0.163"
  • PLATE HEIGHT
    5  MM
  • PLATE HEIGHT
    0.197"
  • TRANSVERSE PITCH
    5.5  MM
  • TRANSVERSE PITCH
    0.217"
  • ADDITIONAL LENGTH
    2.5  MM
  • ADDITIONAL LENGTH
    0.098"
  • BREAKING LOAD ASA STANDARD
    5.8  KN
  • NUMBER OF ROWS
    Duplex
