Self aligning roller bearing 23072RHAK-AH3072-JTEKT

340 340 540 540 134 134

Part number : 23072RHAK-AH3072-JTEKT

JTEKT

Description

The Self Aligning Roller Bearing, known as 23072RHAK-AH3072-JTEKT JTEKT, has an inner diameter of 340 mm, an outer diameter of 540 mm and a thickness of 134 mm.

See data sheet
N/A

  8 to 10 days

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

(646).712.9672

Description

The Self Aligning Roller Bearing, known as 23072RHAK-AH3072-JTEKT JTEKT, has an inner diameter of 340 mm, an outer diameter of 540 mm and a thickness of 134 mm.

See data sheet
product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

(646).712.9672

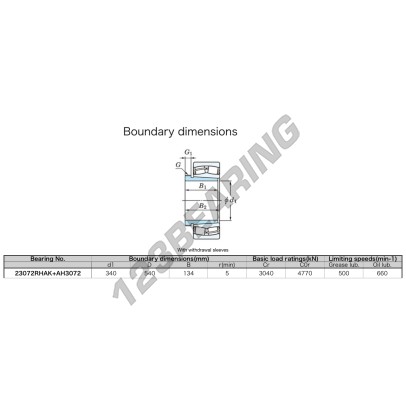

TECHNICAL DATA
  • BRAND
  • N° EAN13
    3616060796226
  • INSIDE DIAMETER
    340  MM
  • INSIDE DIAMETER
    13.386"
  • OUTSIDE DIAMETER
    540  MM
  • OUTSIDE DIAMETER
    21.26"
  • THICKNESS
    134  MM
  • THICKNESS
    5.276"
  • LIMITING SPEED
    500  RPM
  • DYNAMIC LOAD
    3040  KN
  • STATIC LOAD
    4770  KN
  • PACKAGING
    1
Description

The Self Aligning Roller Bearing, known as 23072RHAK-AH3072-JTEKT JTEKT, has an inner diameter of 340 mm, an outer diameter of 540 mm and a thickness of 134 mm.

EXPERT ADVICE

What is a self aligning bearing?

A spherical bearing, or swinging bearing is a bearing that is able to accept that the spindle is slightly out of alignment. These bearings are regularly located in grinders or agricultural machines, regularly placed in "cast iron SN" bearings, with a shim washer and seals specific to these bearings. Attention, there are 2 important variants: • The cylindrical bore bearing, which will be mounted directly on the shaft, in force
• The tapered bore bearing, mounted with a sleeve, on an axis smaller than the bore of basis of turnover.
The tapered bore is indicated by the letter "K" in the reference.

What does the letter "K" mean in the reference?

The letter K means that the bearing has a tapered bore. It should therefore almost always be mounted with a conical sleeve. Attention, this bearing is generally mounted on an axis of 5mm less than the dimension indicated for the bearing.
