230-500RK-AHX30-500-JTEKT
JTEKT

Self aligning roller bearing 230-500RK-AHX30-500-JTEKT

480 480 720 720 167 167

Part number : 230-500RK-AHX30-500-JTEKT

JTEKT
Trustpilot

Trustpilot

Description

The Self Aligning Roller Bearing, known as 230-500RK-AHX30-500-JTEKT JTEKT, has an inner diameter of 480 mm, an outer diameter of 720 mm and a thickness of 167 mm.

See data sheet
N/A

  8 to 10 days

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

(646).712.9672

Trustpilot

Description

The Self Aligning Roller Bearing, known as 230-500RK-AHX30-500-JTEKT JTEKT, has an inner diameter of 480 mm, an outer diameter of 720 mm and a thickness of 167 mm.

See data sheet
product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

(646).712.9672

Trustpilot

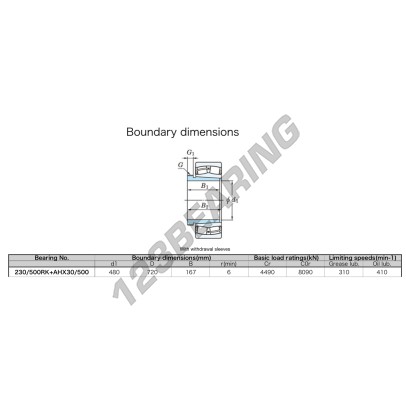

TECHNICAL DATA
  • BRAND
    JTEKT
  • N° EAN13
    3616060796554
  • INSIDE DIAMETER
    480  MM
  • INSIDE DIAMETER
    18.898"
  • OUTSIDE DIAMETER
    720  MM
  • OUTSIDE DIAMETER
    28.346"
  • THICKNESS
    167  MM
  • THICKNESS
    6.575"
  • LIMITING SPEED
    310  RPM
  • DYNAMIC LOAD
    4490  KN
  • STATIC LOAD
    8090  KN
  • PACKAGING
    1
Description

The Self Aligning Roller Bearing, known as 230-500RK-AHX30-500-JTEKT JTEKT, has an inner diameter of 480 mm, an outer diameter of 720 mm and a thickness of 167 mm.

EXPERT ADVICE


What is a self aligning bearing?


 A spherical bearing, or swinging bearing is a bearing that is able to accept that the spindle is slightly out of alignment.   These bearings are regularly located in grinders or agricultural machines, regularly placed in "cast iron SN" bearings, with a shim washer and seals specific to these bearings.   Attention, there are 2 important variants:   • The cylindrical bore bearing, which will be mounted directly on the shaft, in force
• The tapered bore bearing, mounted with a sleeve, on an axis smaller than the bore of basis of turnover.   The tapered bore is indicated by the letter "K" in the reference.


What does the letter "K" mean in the reference?


 The letter K means that the bearing has a tapered bore. It should therefore almost always be mounted with a conical sleeve. Attention, this bearing is generally mounted on an axis of 5mm less than the dimension indicated for the bearing.
