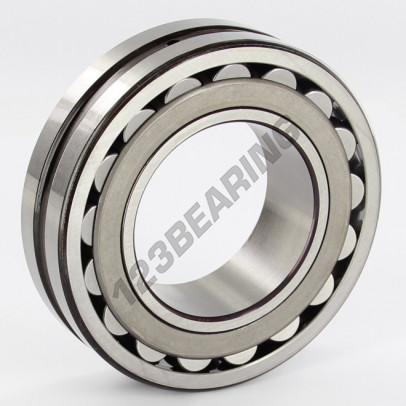

Self aligning roller bearing 22209-EK-C3-SKF

45 45 85 85 23 23

Part number : 22209-EK-C3-SKF

SKF

Description

The Self Aligning Roller Bearing, known as 22209-EK-C3-SKF SKF, has an inner diameter of 45 mm, an outer diameter of 85 mm and a thickness of 23 mm.

See data sheet
Your price: $61.85

  16 parts in stock

logo_delivery Delivered tomorrow. order within

Added

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

(646).712.9672

Description

The Self Aligning Roller Bearing, known as 22209-EK-C3-SKF SKF, has an inner diameter of 45 mm, an outer diameter of 85 mm and a thickness of 23 mm.

See data sheet
product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

(646).712.9672

CUSTOMERS ALSO BOUGHT
TECHNICAL DATA
  • INSIDE DIAMETER
    45  MM
  • INSIDE DIAMETER
    1.772"
  • OUTSIDE DIAMETER
    85  MM
  • OUTSIDE DIAMETER
    3.346"
  • THICKNESS
    23  MM
  • THICKNESS
    0.906"
  • LIMITING SPEED
    7500  RPM
  • BRAND
  • WEIGHT
    571  G
  • DYNAMIC LOAD
    102000  KN
  • STATIC LOAD
    98000  KN
  • PACKAGING
    1
  • N° EAN13
    7316572048573
Description

The Self Aligning Roller Bearing, known as 22209-EK-C3-SKF SKF, has an inner diameter of 45 mm, an outer diameter of 85 mm and a thickness of 23 mm.

EXPERT ADVICE

What is a self aligning bearing?

A spherical bearing, or swinging bearing is a bearing that is able to accept that the spindle is slightly out of alignment. These bearings are regularly located in grinders or agricultural machines, regularly placed in "cast iron SN" bearings, with a shim washer and seals specific to these bearings. Attention, there are 2 important variants: • The cylindrical bore bearing, which will be mounted directly on the shaft, in force
• The tapered bore bearing, mounted with a sleeve, on an axis smaller than the bore of basis of turnover.
The tapered bore is indicated by the letter "K" in the reference.

What does the letter "K" mean in the reference?

The letter K means that the bearing has a tapered bore. It should therefore almost always be mounted with a conical sleeve. Attention, this bearing is generally mounted on an axis of 5mm less than the dimension indicated for the bearing.
