2309-JTEKT
JTEKT

Self aligning ball bearing 2309-JTEKT

45 45 100 100 36 36

Part number : 2309-JTEKT

JTEKT
Trustpilot

Trustpilot

Description

The Self Aligning Ball Bearing, known as 2309-JTEKT JTEKT, has an inner diameter of 45 mm, an outer diameter of 100 mm and a thickness of 36 mm.

N/A

  8 to 10 days

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

(646).712.9672

Trustpilot

Description

The Self Aligning Ball Bearing, known as 2309-JTEKT JTEKT, has an inner diameter of 45 mm, an outer diameter of 100 mm and a thickness of 36 mm.

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

(646).712.9672

Trustpilot

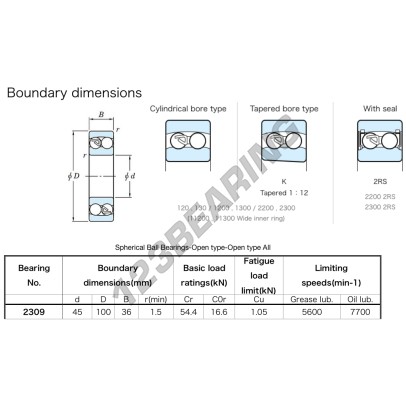

TECHNICAL DATA
  • BRAND
    JTEKT
  • N° EAN13
    4549250102974
  • INSIDE DIAMETER
    45  MM
  • INSIDE DIAMETER
    1.772"
  • OUTSIDE DIAMETER
    100  MM
  • OUTSIDE DIAMETER
    3.937"
  • THICKNESS
    36  MM
  • THICKNESS
    1.417"
  • LIMITING SPEED
    7700  RPM
  • DYNAMIC LOAD
    54.4  KN
  • STATIC LOAD
    16.6  KN
  • PACKAGING
    1
Description

The Self Aligning Ball Bearing, known as 2309-JTEKT JTEKT, has an inner diameter of 45 mm, an outer diameter of 100 mm and a thickness of 36 mm.

EXPERT ADVICE


What is a self aligning bearing?


 A spherical bearing, or swinging bearing is a bearing that is able to accept that the spindle is slightly out of alignment.   These bearings are regularly located in grinders or agricultural machines, regularly placed in "cast iron SN" bearings, with a shim washer and seals specific to these bearings.   Attention, there are 2 important variants:   • The cylindrical bore bearing, which will be mounted directly on the shaft, in force
• The tapered bore bearing, mounted with a sleeve, on an axis smaller than the bore of basis of turnover.   The tapered bore is indicated by the letter "K" in the reference.


What does the letter "K" mean in the reference?


 The letter K means that the bearing has a tapered bore. It should therefore almost always be mounted with a conical sleeve. Attention, this bearing is generally mounted on an axis of 5mm less than the dimension indicated for the bearing.
