Self aligning ball bearing 1322-ZEN

110 110 240 240 50 50

Part number : 1322-ZEN

ZEN

Description

The Self Aligning Ball Bearing, known as 1322-ZEN ZEN, has an inner diameter of 110 mm, an outer diameter of 240 mm and a thickness of 50 mm.

See data sheet
N/A

  8 to 10 days

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

(646).712.9672

Description

The Self Aligning Ball Bearing, known as 1322-ZEN ZEN, has an inner diameter of 110 mm, an outer diameter of 240 mm and a thickness of 50 mm.

See data sheet
product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

(646).712.9672

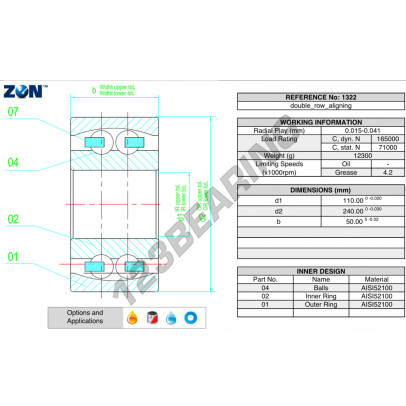

TECHNICAL DATA
  • BRAND
  • N° EAN13
    3616060505361
  • INSIDE DIAMETER
    110  MM
  • INSIDE DIAMETER
    4.331"
  • OUTSIDE DIAMETER
    240  MM
  • OUTSIDE DIAMETER
    9.449"
  • THICKNESS
    50  MM
  • THICKNESS
    1.969"
  • LIMITING SPEED
    4200  RPM
  • DYNAMIC LOAD
    165  KN
  • STATIC LOAD
    71  KN
  • PACKAGING
    1
Description

The Self Aligning Ball Bearing, known as 1322-ZEN ZEN, has an inner diameter of 110 mm, an outer diameter of 240 mm and a thickness of 50 mm.

EXPERT ADVICE

What is a self aligning bearing?

A spherical bearing, or swinging bearing is a bearing that is able to accept that the spindle is slightly out of alignment. These bearings are regularly located in grinders or agricultural machines, regularly placed in "cast iron SN" bearings, with a shim washer and seals specific to these bearings. Attention, there are 2 important variants: • The cylindrical bore bearing, which will be mounted directly on the shaft, in force
• The tapered bore bearing, mounted with a sleeve, on an axis smaller than the bore of basis of turnover.
The tapered bore is indicated by the letter "K" in the reference.

What does the letter "K" mean in the reference?

The letter K means that the bearing has a tapered bore. It should therefore almost always be mounted with a conical sleeve. Attention, this bearing is generally mounted on an axis of 5mm less than the dimension indicated for the bearing.
