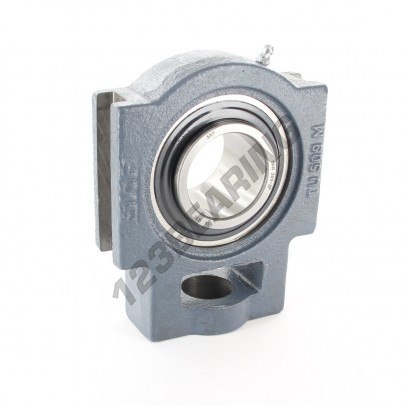

Cast Housed Bearing - 1 Bolt
Description
The Cast Housed Bearing - 1 Bolt which is known by TU45-TF-SKF SKF has a bore diameter of 45 mm. This reference is made of FONTE and the type of clamping is by Set screw.
How to read the reference of a housed bearing?
You can find all the information you need about our products in our expert's advice, by clicking here Here
3 parts in stock
Need help or advice?
(646).712.9672
Description
The Cast Housed Bearing - 1 Bolt which is known by TU45-TF-SKF SKF has a bore diameter of 45 mm. This reference is made of FONTE and the type of clamping is by Set screw.
How to read the reference of a housed bearing?
You can find all the information you need about our products in our expert's advice, by clicking here Here
Need help or advice?
(646).712.9672
Brand | SKF |
---|---|
N° EAN13 | 7316577058775 |
Shaft diameter | 45 mm |
No. of fasteners | 1.0000 |
Tightening | Set screw |
Limiting speed | 4 300 rpm |
Material | FONTE |
Weight | 2 300 g |
Dynamic load | 33 kN |
Static load | 22 kN |
Packaging | 1 |
The Cast Housed Bearing - 1 Bolt which is known by TU45-TF-SKF SKF has a bore diameter of 45 mm. This reference is made of FONTE and the type of clamping is by Set screw.
How to read the reference of a housed bearing?
Example:
UCF205-SNR
Where
UC = type and shape of bearing
F = type and shape of bearing
205 = housed bearing and bearing dimensions
SNR = manufacturer's markExample N ° 2:
FY50-TF-SKF
Where
FY = Type and shape of the bearing
50 = size identification (diameter of the bore)
TF = type and shape of the bearing
SKF = manufacturer's mark
